"KROEPLIN" (Made in Germany) Measurement of foamed material and foils I Range 0 - 10 mm. & Depth 35 mm. I Flat Ø 6 mm
แบรนด์ : KROEPLIN
Share

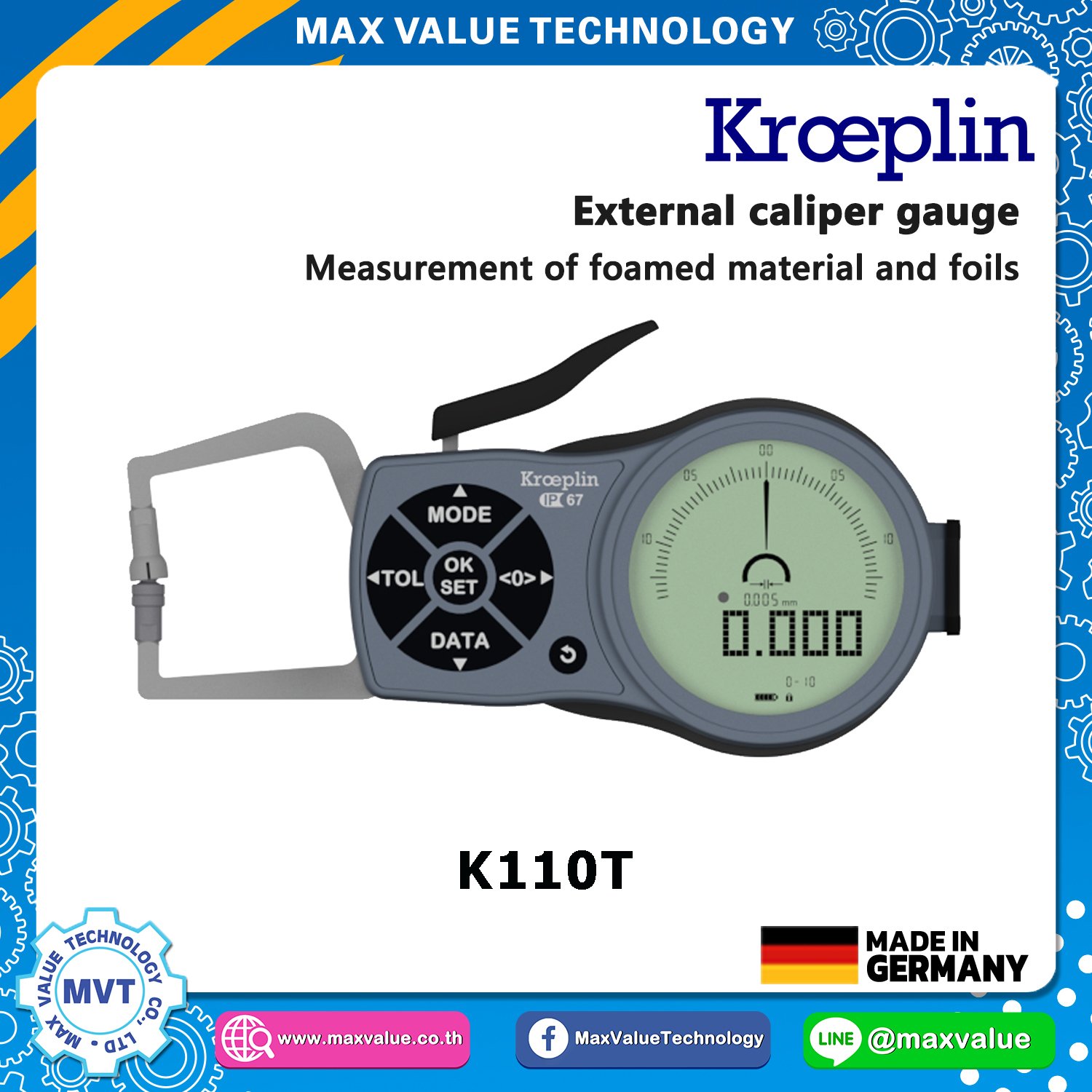

K110T - เขาควายวัดนอก แบบดิจิตอล
Brand : KROEPLIN (Made in Germany)
-----------------
Electronic external measuring gauge
Measurement of foamed material and foils
- Measuring range Meb: 0 – 10 mm
- Numerical interval Zw: 0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05mm
- Measuring depth L max.: 35 mm
Additional information - caliper gauge
| Type | K110T |
| Display mm / inch | inch, mm, mm + inch |
| Application | Measurement of foamed material and foils |
| Measuring span Mes | 10 mm |
| Measuring range Meb | 0 – 10 mm |
| Range of indication Azb | 0 – 10,5 mm |
| Numerical interval Zw | 0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05mm |
| Max. permissible errors G | 0,02 mm |
| Repeatability limit r | 0,005 mm |
| Measuring force F min. | 0,8 N |
| Measuring force F max. | 1,2 N |
| Type of measuring contact movable | Flat Ø 6 mm |
| Measuring contact movable Hb | 21,7 mm |
| Type of measuring contact fixed | Flat Ø 6 mm |
| Measuring contact fixed Hf | 14,8 mm |
| Measuring depth max. L | 35 mm |
| Weight | 265 g |
| Protection class | IP67 |
