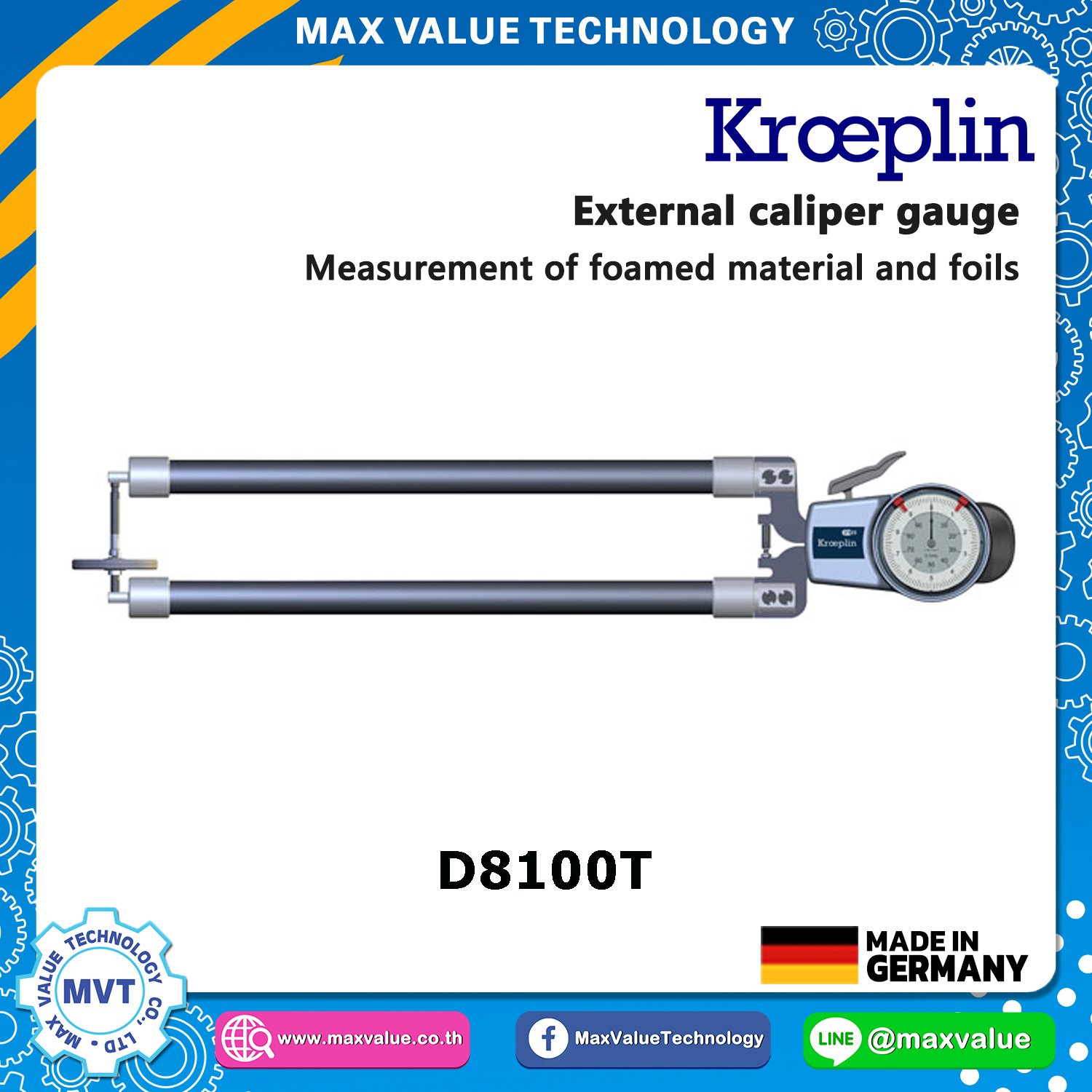

"KROEPLIN" (Made in Germany) Measurement of foamed material and foils I Range 0-100 mm. & Depth 382 mm. I Flat Ø 50 mm
หมวดหมู่ : Metrology Product ,  Caliper Gauge ,  External Caliper Gauge ,  Measurement of foamed material and foils ,
แบรนด์ : KROEPLIN
Share
D8100T - เขาควายวัดนอก แบบสเกล
Brand : KROEPLIN (Made in Germany)
-----------------
Mechanical external measuring gauge
Measurement of foamed material and foils
- Measuring range Meb: 0 – 100 mm
- Numerical interval Zw: 0,01 mm
- Measuring depth L max.: 382 mm
Additional information - caliper gauge
Type | D8100T |
Display mm / inch | mm |
Application | Measurement of foamed material and foils |
Measuring span Mes | 100 mm |
Measuring range Meb | 0 – 100 mm |
Range of indication Azb | 0 – 101 mm |
Numerical interval Zw | 0,1 mm |
Max. permissible errors G | 0,15 mm |
Repeatability limit r | 0,1 mm |
Measuring force F min. | 0,8 N |
Measuring force F max. | 8 N |
Type of measuring contact movable | Flat Ø 50 mm |
Measuring contact movable Hb | 41 mm |
Type of measuring contact fixed | Flat Ø 50 mm |
Measuring contact fixed Hf | 9 mm |
Measuring depth max. L | 382 mm |
Weight | 610 g |
Protection class | IP67 |
