"KROEPLIN" (Made in Germany) Measurement of foamed material and foils I Range 0-15mm. & Depth 46 mm. Ball Ø 1.5
หมวดหมู่ : Metrology Product , Caliper Gauge , External Caliper Gauge , Measurement of tube wall thickness ,
แบรนด์ : KROEPLIN
Share

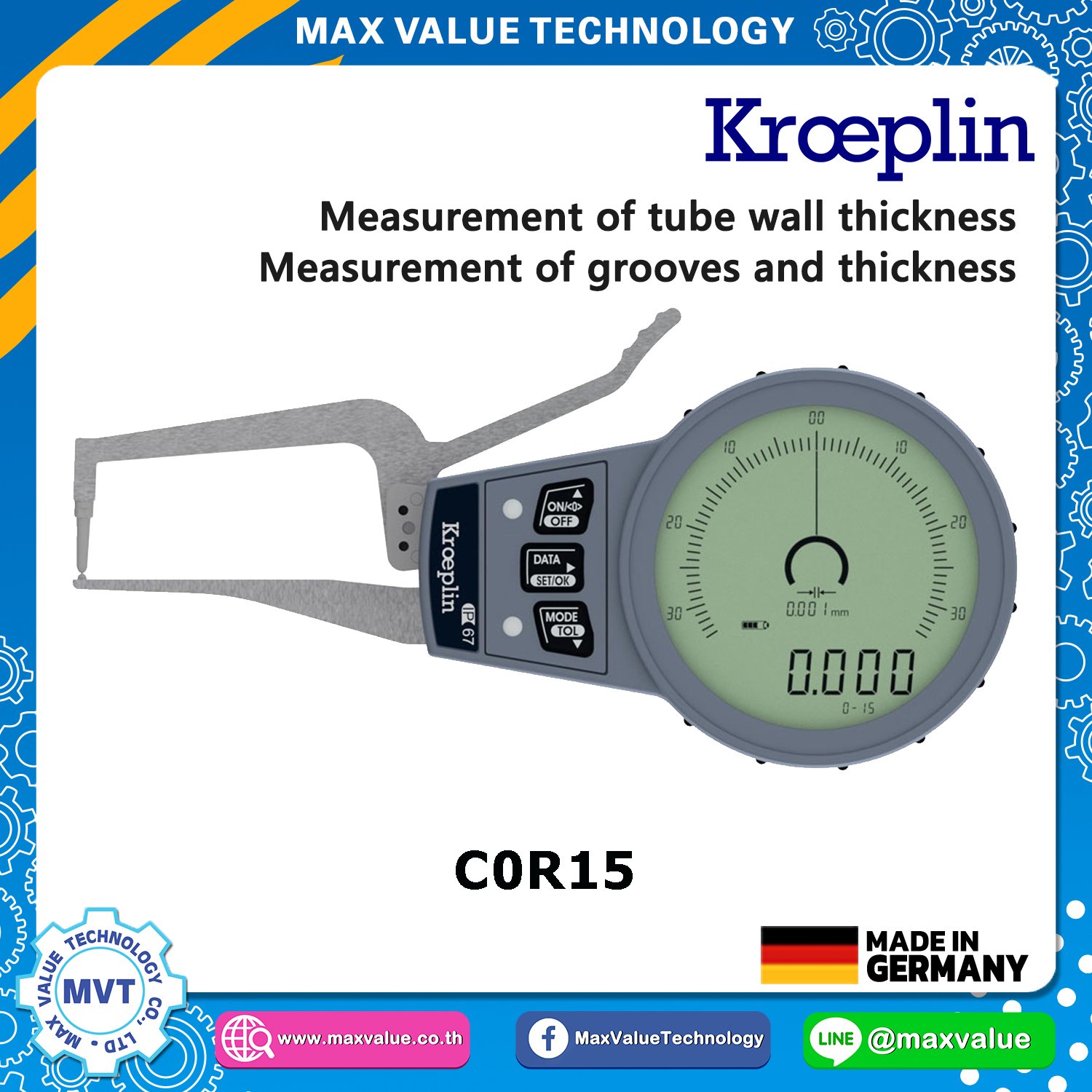

C0R15 - เขาควายวัดนอก แบบดิจิตอล
Brand : KROEPLIN (Made in Germany)
-----------------
Mechanical external measuring gauge
Measurement of foamed material and foils
- Measuring range Meb: 0 – 15 mm
- Numerical interval Zw: 0,001/0,002/0,005/0,01 mm
- Measuring depth L max.: 46 mm
Additional information - caliper gauge
| Type | C0R15 |
| Display mm / inch | mm + inch |
| Application | Measurement of tube wall thickness |
| Measuring span Mes | 15 mm |
| Measuring range Meb | 0 – 15 mm |
| Range of indication Azb | 0 – 15,5 mm |
| Numerical interval Zw | 0,001 / 0,002 / 0,005 / 0,01 mm |
| Max. permissible errors G | 0,01 mm |
| Repeatability limit r | 0,005 mm |
| Measuring force F min. | 1,3 N |
| Measuring force F max. | 5 N |
| Type of measuring contact movable | HM-Ball Ø 1,5 mm |
| Measuring contact movable Hb | 17 mm |
| Type of measuring contact fixed | HM-Ball Ø 1,5 mm |
| Measuring contact fixed Hf | 0,9 mm |
| Measuring depth max. L | 45 mm |
| Weight | 165 g |
| Protection class | IP67 |
