"KROEPLIN" (Made in Germany) Measurement of tube wall thickness I Range 0-50 mm. & Depth 167 mm. Chisel R 0.75
หมวดหมู่ : Metrology Product , Caliper Gauge , External Caliper Gauge , Measurement of grooves and thickness ,
แบรนด์ : KROEPLIN
Share

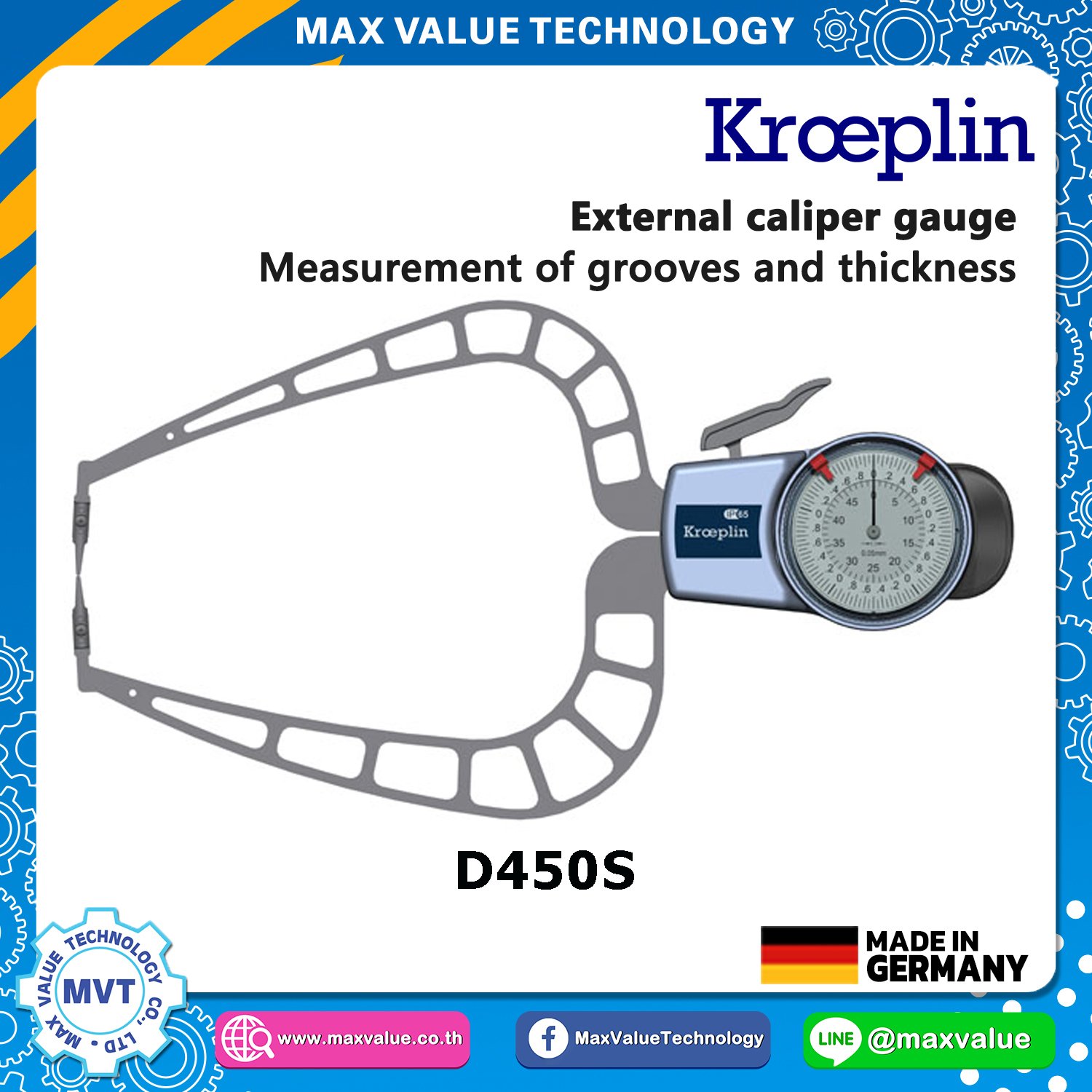

D450S - เขาควายวัดนอก แบบไดอัล/แบบสเกล
Brand : KROEPLIN (Made in Germany)
-----------------
Mechanical external measuring gauge
Measurement of tube wall thickness
- Measuring range Meb: 0 – 50 mm
- Numerical interval Zw: 0,05 mm
- Measuring depth L max.: 167 mm
Additional information - caliper gauge
| Type | D450S |
| Display mm / inch | mm |
| Application | External measurement |
| Measuring span Mes | 50 mm |
| Measuring range Meb | 0 – 50 mm |
| Range of indication Azb | 0 – 50,5 mm |
| Numerical interval Zw | 0,05 mm |
| Max. permissible errors G | 0,05 mm |
| Repeatability limit r | 0,025 mm |
| Measuring force F min. | 0,8 N |
| Measuring force F max. | 7 N |
| Type of measuring contact movable | |
| Measuring contact movable Hb | 30 mm |
| Type of measuring contact fixed | |
| Measuring contact fixed Hf | 30 mm |
| Measuring depth max. L | 167 mm |
| Weight | 430 g |
| Protection class | IP67 |
