"KROEPLIN" (Made in Germany) Measurement of grooves and thickness I Range 0-20 mm. & Depth 85 mm. Chisel R 0.4 mm
Categories : Metrology Product , Caliper Gauge , External Caliper Gauge , Measurement of grooves and thickness ,
Brand : KROEPLIN
Share

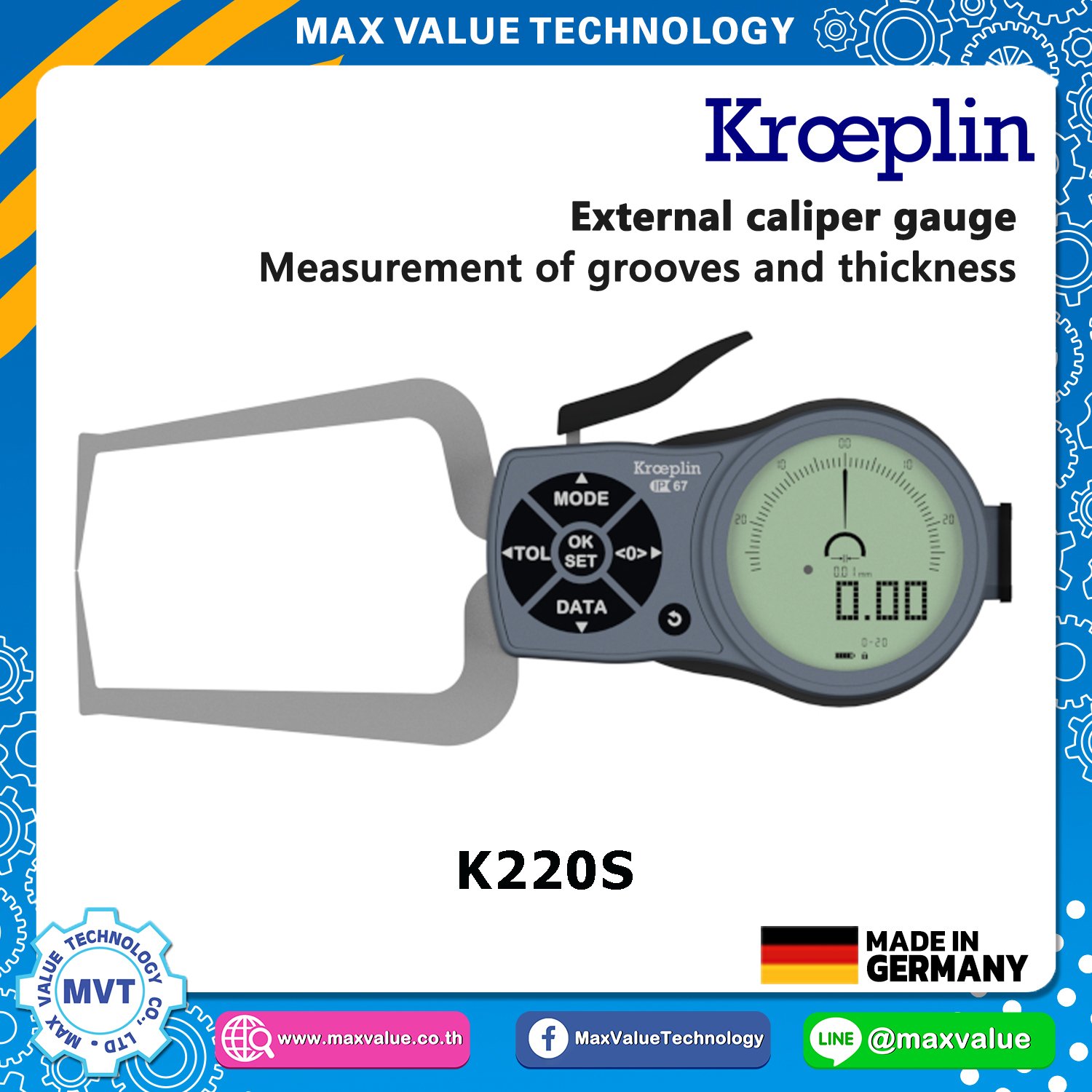

K220S - External caliper gauge
Brand : KROEPLIN (Made in Germany)
-----------------
Electronic external measuring gauge
Measurement of grooves and thickness
- Measuring range Meb: 0 – 20 mm
- Numerical interval Zw: 0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05mm
- Measuring depth L max.: 85 mm
Additional information - caliper gauge
| Type | K220S |
| Display mm / inch | inch, mm,mm + inch |
| Application | External measurement |
| Measuring span Mes | 20 mm |
| Measuring range Meb | 0 – 20 mm |
| Range of indication Azb | 0 – 20,5 mm |
| Numerical interval Zw | 0,001 / 0,002 / 0,005 / 0,01 mm/ 0,02 / 0,05mm |
| Max. permissible errors G | 0,03 mm |
| Repeatability limit r | 0,1 mm |
| Measuring force F min. | 1,1 N |
| Measuring force F max. | 1,6 N |
| Type of measuring contact movable | Chisel R 0,4 mm |
| Measuring contact movable Hb | 24,7 mm |
| Type of measuring contact fixed | Chisel R 0,4 mm |
| Measuring contact fixed Hf | 24,6 mm |
| Measuring depth max. L | 85 mm |
| Weight | 300 g |
| Protection class | IP67 |
