"KROEPLIN" (Made in Germany) Can diameter 57mm DIN EN 15007 I Range 0 – 30 mm.
Display
Categories : Metrology Product ,  Aerosal Measurement ,  Aerosol receptacles with valves ,
Brand : KROEPLIN
Share

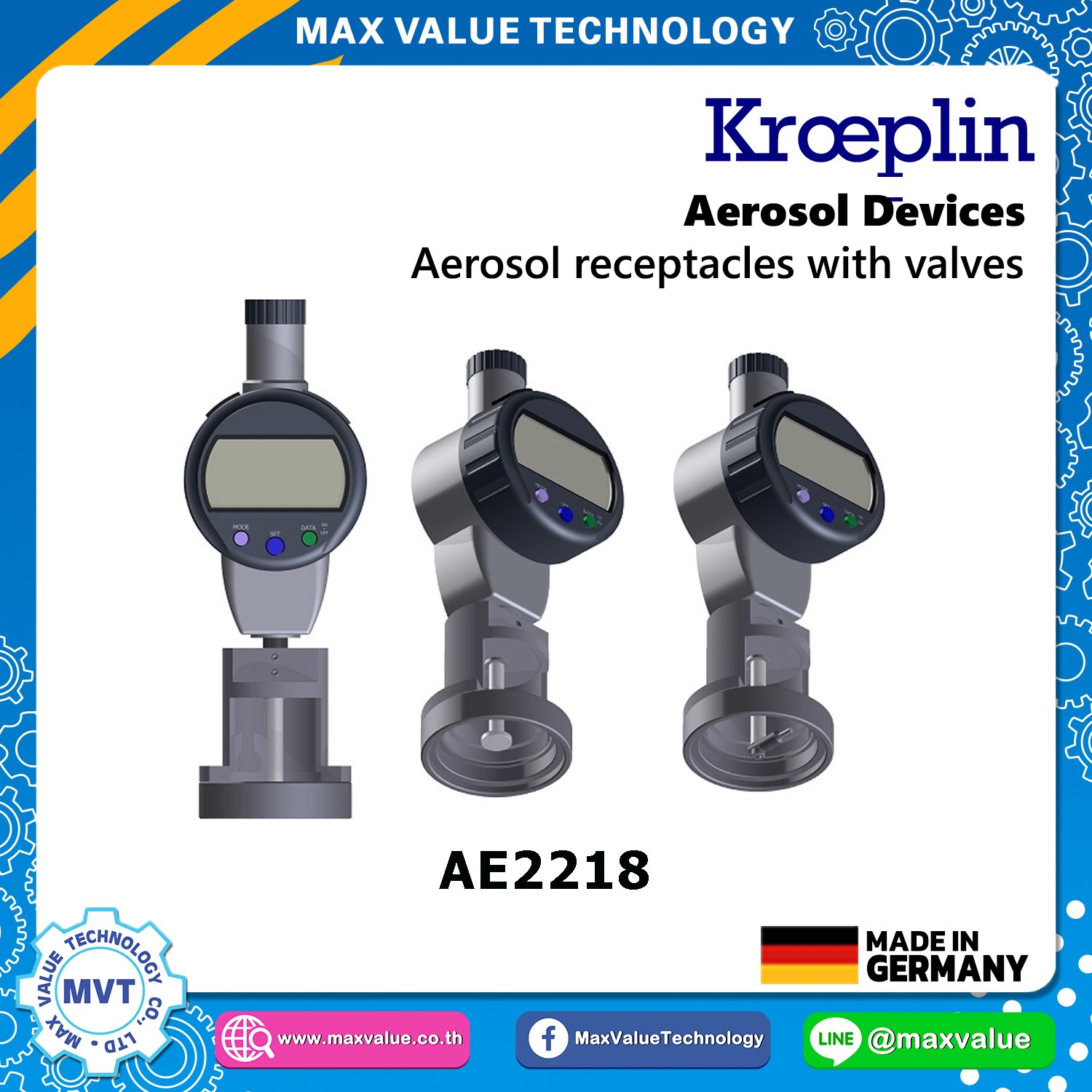

A2218/AE2218 - Aerosol devices
Brand : KROEPLIN (Made in Germany)
-----------------
Dial/Digital Aerosol receptacles with valves
Can diameter 57mm DIN EN 15007
- Measuring range Meb: 0 – 30 mm
Download Data sheet (Display Scale)
Download Data sheet (Display Digital)
Download Catalog KROEPLIN - Aerosol devices
Additional information - caliper gauge
Type | A2218 | AE2218 |
Display | Scale | Digital |
Display mm / inch | mm | mm |
Application | Aerosol devices | Aerosol devices |
Measuring span Mes | 30 mm | 30 mm |
Measuring range Meb | 0 – 30 mm | 0 – 30 mm |
Range of indication Azb | Not available | Not available |
Numerical interval Skw | 0,01 mm | 0,01 mm |
Max. permissible errors G | 0,03 mm | 0,03 mm |
Repeatability limit r | 0,02 mm | 0,02 mm |
Measuring force F min. | 0,7 N | 0,7 N |
Measuring force F max. | 3 N | 3 N |
Weight | 280 g | 330 g |
Inch-version | A2100i | - |
