Pre-Order

Portable stroboscope RT STROBE pocketLED LASER

Attribute:

TWO in ONE – LED Stroboscope and Laser-Tachometer...

Brand : RheinTacho

Share

Portable stroboscope RT STROBE pocketLED LASER

Brand : RHEINTACHO

---------------------------------------

Product Feature :

Within the stroboscope mode, the portable multifunction device RT STROBE pocketLED LASER flashes with up to 999,999 flashes per minute and belongs to the best-performing devices of its class. The quartz accuracy ensures absolute flash precision. 6 extremely bright LEDs ensure an exceptional illumination area.

By means of a reflective laser beam, the RT STROBE pocketLED LASER offers the possibility to determine the flash rate almost automatically and thus let moving parts appear optically “frozen”. If you only want to measure the revolutions, you can also use the stroboscope as a laser tachometer with disabled flash function.



Technical shot data :

Frequency range30 ... 999,999 FPM
Light intensity max.6,500 Lux @ 300 mm (12 inch) / 9,000 Lux @ 200 mm (8 inch)
Degree of protectionIP65 / splash-water protected
Flash duration0.025° … 6.000° / 1 … 1,000 μs
MaterialAluminium / ABS, heavy duty design
Dimensions device191 x 82 x 60 mm

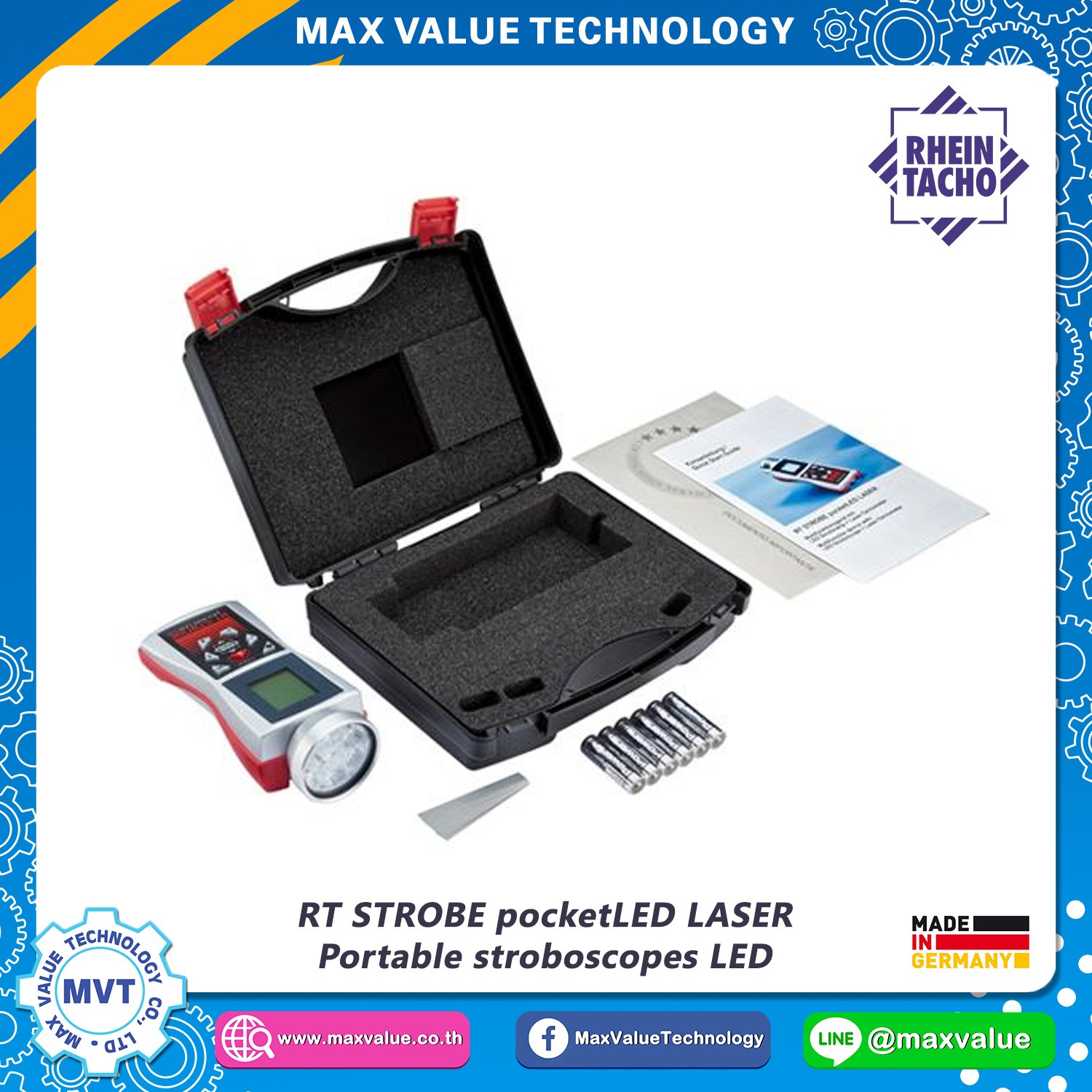

Scope of delivery :

A4-3005
Portable LED stroboscope RT STROBE pocketLED LASER
Operating instructions
Calibration certificate
Reflective tapes
Batteries
Case


Catalogue :

 Brochure RT STPOBE pocketLED
