Digital micrometer screws Smart

Name: Digital micrometer screws Smart
Brand: SYLVAC
SKU: Digital micrometer screws Smart
Availability: InStock

Attribute:

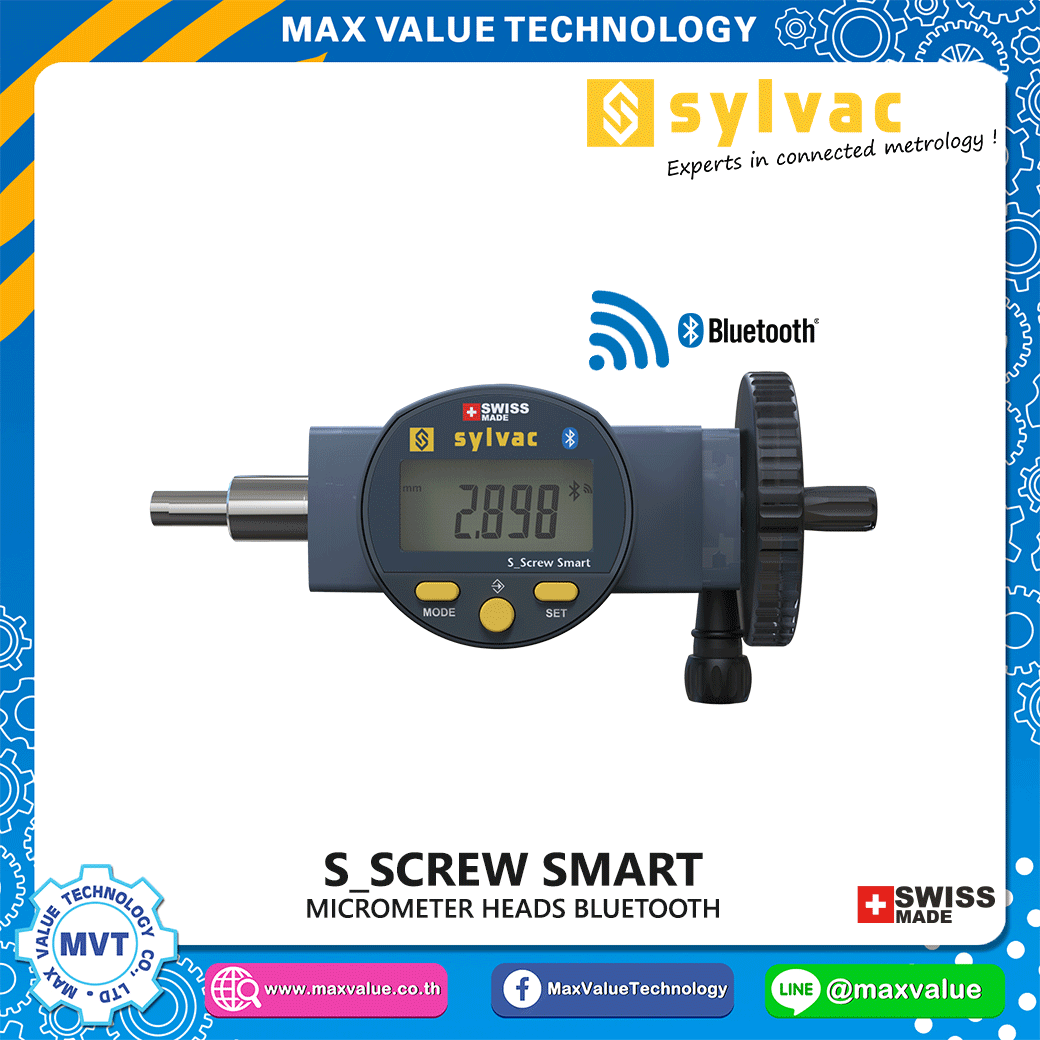

Digital micrometric screws with Ø 45 mm dial rotatable by 270° allowing use in the X or Y axis

Add to wishlist

Compare

Brand : SYLVAC

Digital micrometer screws Smart
Brand : SYLVAC (swiss made )
---------------------------------------
DESCRIPTION

Digital micrometric screws with Ø 45 mm dial rotatable by 270° allowing use in the X or Y axis.
Integrated Bluetooth® system.

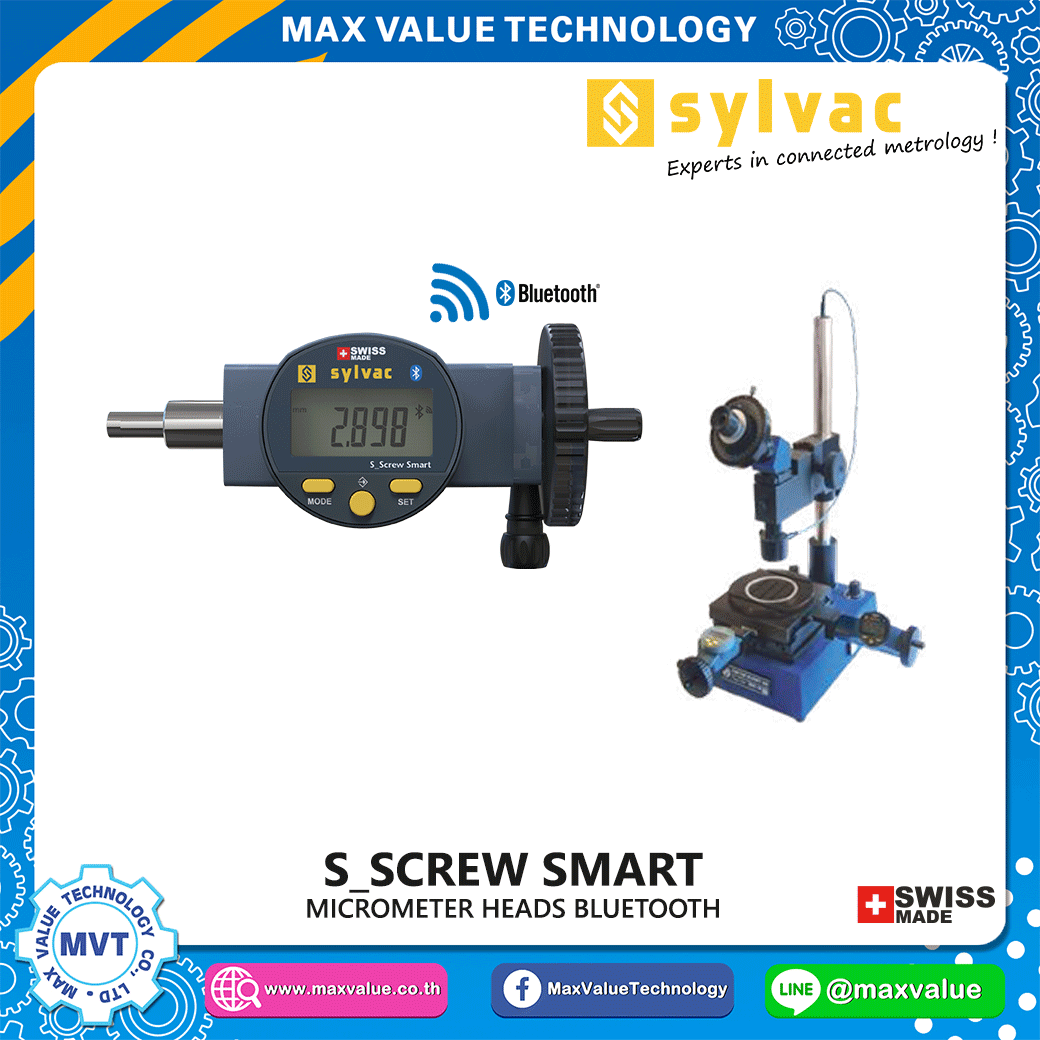

Developed mainly to equip X-Y measuring tables (measuring microscopes).
Display resolution 0.001 mm.
Non-turnable spindle Ø 6.5 with hard metal tip.
Fixing by Ø 12 h6.
Steering wheel Ø 50 mm.
Additional data output Power.
Measuring range 25 and 50 mm.
IP54 protection.

Technical Specifications

	852-2601	852-2611
Measuring range mm	0-25	0-50
Max. Error µm	5	8
Repeatability µm	2	2
Resolution mm	0.001	0.001
A mm	74.5	98.5
B mm	33.1	57.1
Output data	Bluetooth® wireless technology* / USB / RS232
Selection of measuring direction	•
PRESET function	•
4 measurement references	•
Multiplication factor	•
