TCV-FM 2.4 GHz
Torque Control Verifier
Brand : SR Torque (USA made)
---------------------------------------
I/O driven, the TCV is ideal where accuracy and repeatability are needed. Batch count can be performed by PLC.
- New Feature! Two SLTC FM-2.4 GHz wrenches can be used simultaneously with the TCV. Double your production or
throughput. - Immediately informs operator via lights and a buzzer of proper (“Accept”) or improper (“Reject”) wrench use.
- 5 pin connector for use with 24 VDC I/O system.
- Device Programmer software is included with each TCV and allows the ability to assign the purpose of the outputs.
- Easily program tool use specifications through the USB port with supplied software.
- Operates on either 110-120 VAC or 220-240 VAC power.
- See page: 20 for SLTC FM 2.4 GHz wrench information.

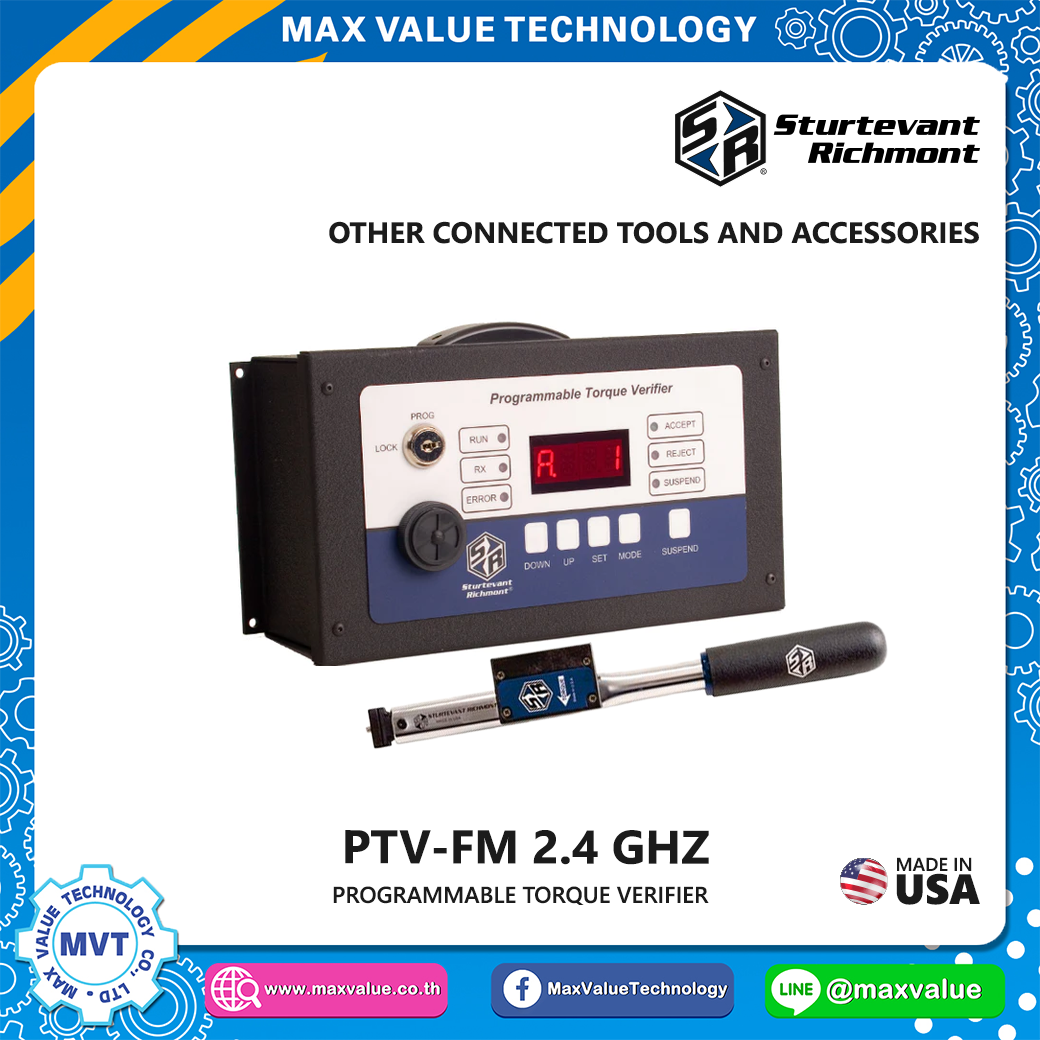

PTV-FM 2.4 GHz
Programmable Torque Verifier
The PTV is our oldest and most popular controller. The PTV is capable of managing 4 parameter sets. Each parameter is paired with a specific wrench. If the operator selects the wrong wrench, communication is ignored until the correct wrench is used.
This is the first, and principle hall mark of all SR tool controllers. The right tool, at the right time ensures accuracy of the assembly operation.
- Immediately informs operator via lights and a buzzer of proper (“Accept”) or improper (“Reject”) wrench use.
- Notifies operator and line when batch is complete.
- Allows up to 255 fasteners per batch. Counts fasteners in batch in either direction: up or down.
- Cycle accept, cycle reject, batch complete, and reset relays for use with line control system.
- Simple and straightforward front panel programming with key lock security control.
- Control tool use sequencing through the unit or via 24 VDC control system.
- Operates on either 110-120 VAC or 220-240 VAC power.
- See page 20 for SLTC FM 2.4 GHz wrench capacities and part numbers.
Order the PTV-FM 2.4 GHz using part number 10466.
