Height Gauge for the Workshop - Very robust and mobile instrument for height measuring and tracing in production environment.
Measuring Range
หมวดหมู่ : Metrology Product , Height Gauge ,
แบรนด์ : TRIMOS
Share
Brand TRIMOS (swiss made)

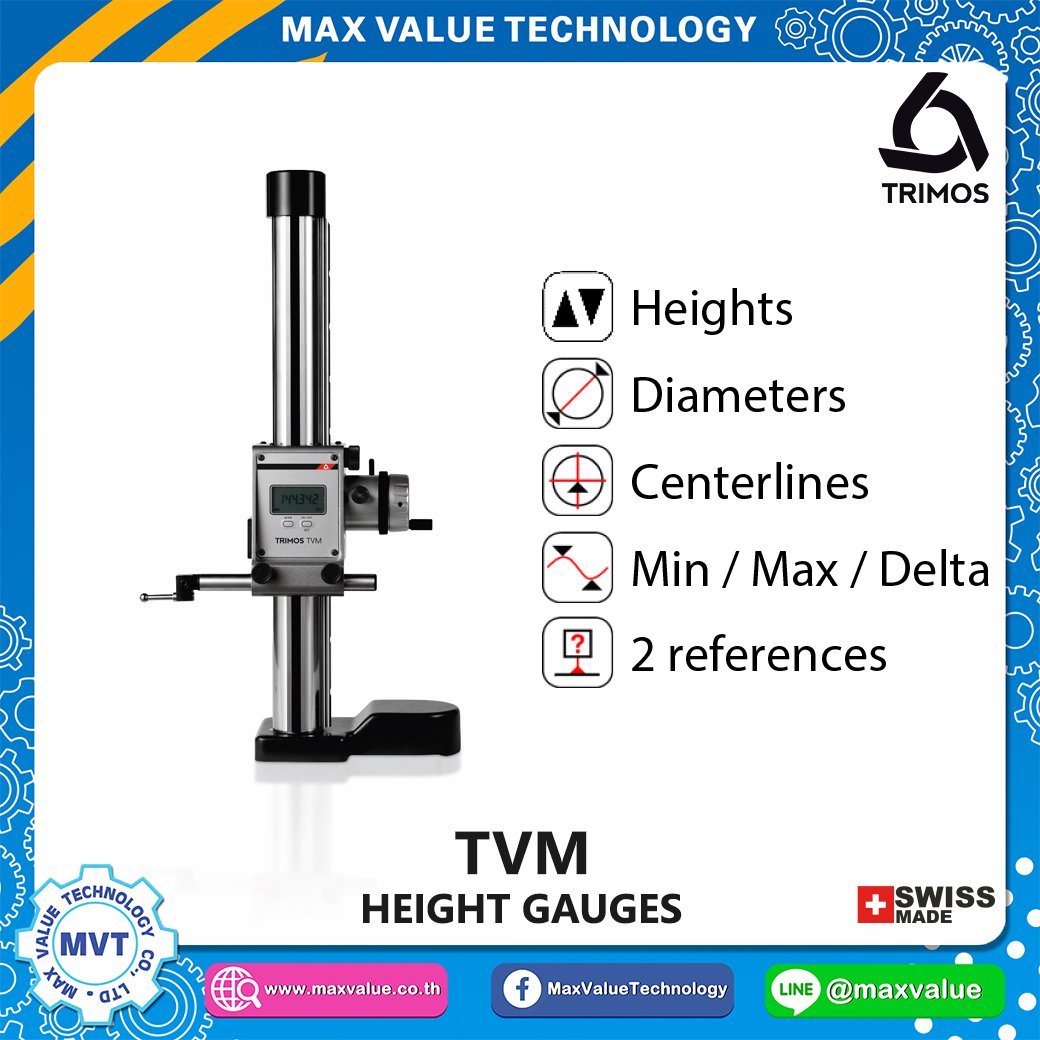

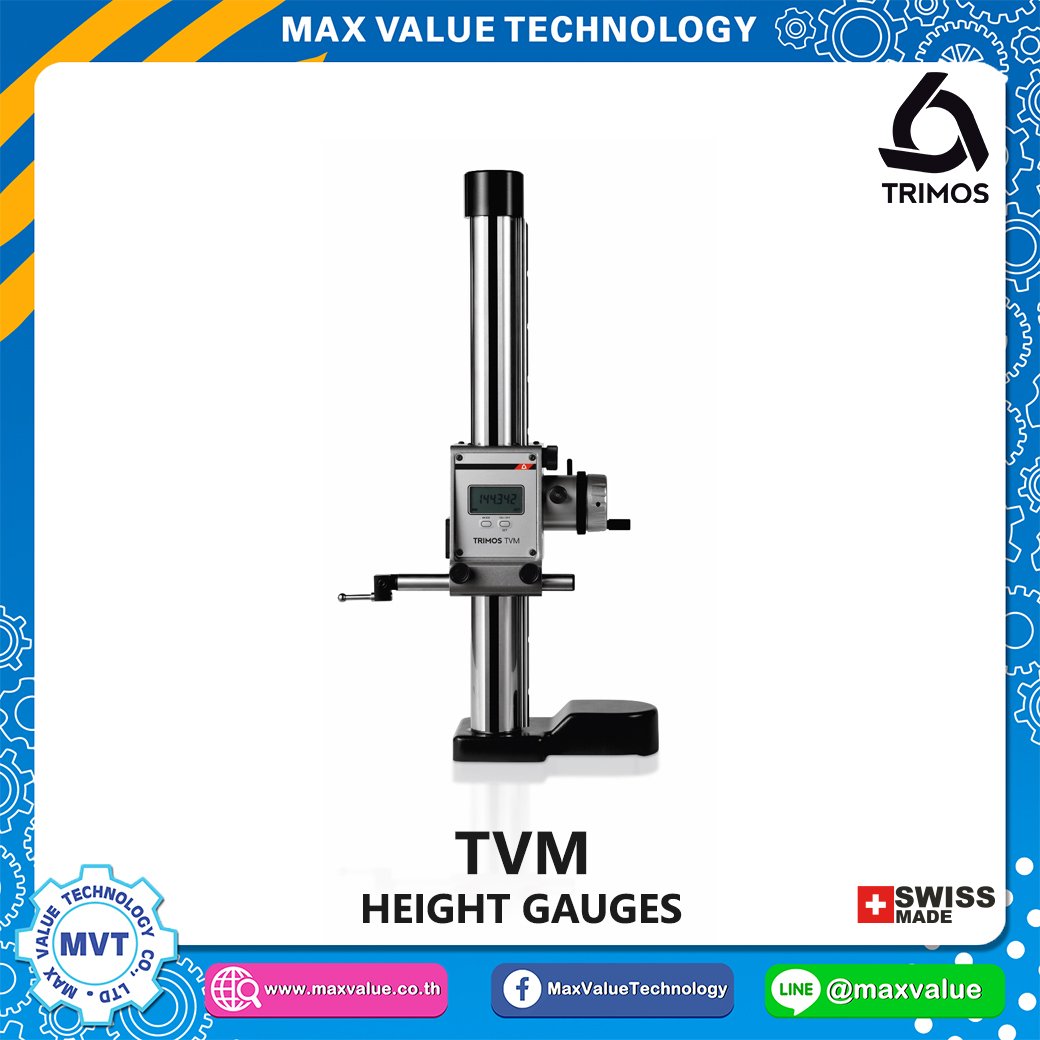

Height Gauge for the Workshop
The TVM instruments are perfect for height measurements and scribing work and reliable in all kinds of workshop conditions. The result of an unique, compact design of the instrument is great mobility and extreme stability.
Because of its advanced measuring system, the self-contained working time of the TVM is one year. Therefore it can be used for multiple applications in the workshop area. The simplicity of manipulation allows constant change of the user without any time-consuming training.
The success of the TVM among competitive gauges is outstanding. More than 14’000 instruments are in use worldwide. A large range of accessories for all kinds of measuring applications is available.
| TVM | 304 | 604 | |
| Measuring range | mm (in) | 320 (12) | 620 (24) |
| Max permissible errors, BMPE | mm | 0.02 | 0.03 |
| Repeatability, RMPE (2s) | mm | 0.005 | |
| Frontal squareness deviation SMPE | mm | 0.02 | 0.03 |
| Max. Resolutions | mm | 0.01/0.001 | |
| Measuring force | N | 3 | |
| Max. manual carriage displacement speed | mm/s | 1500 | |
| Autonomy | h | 2000 | |
| Data output | Opto RS232 | ||
| Operational temperature | °C | +10 - +40 | |
| Temperature of storage | °C | -10 - +40 | |

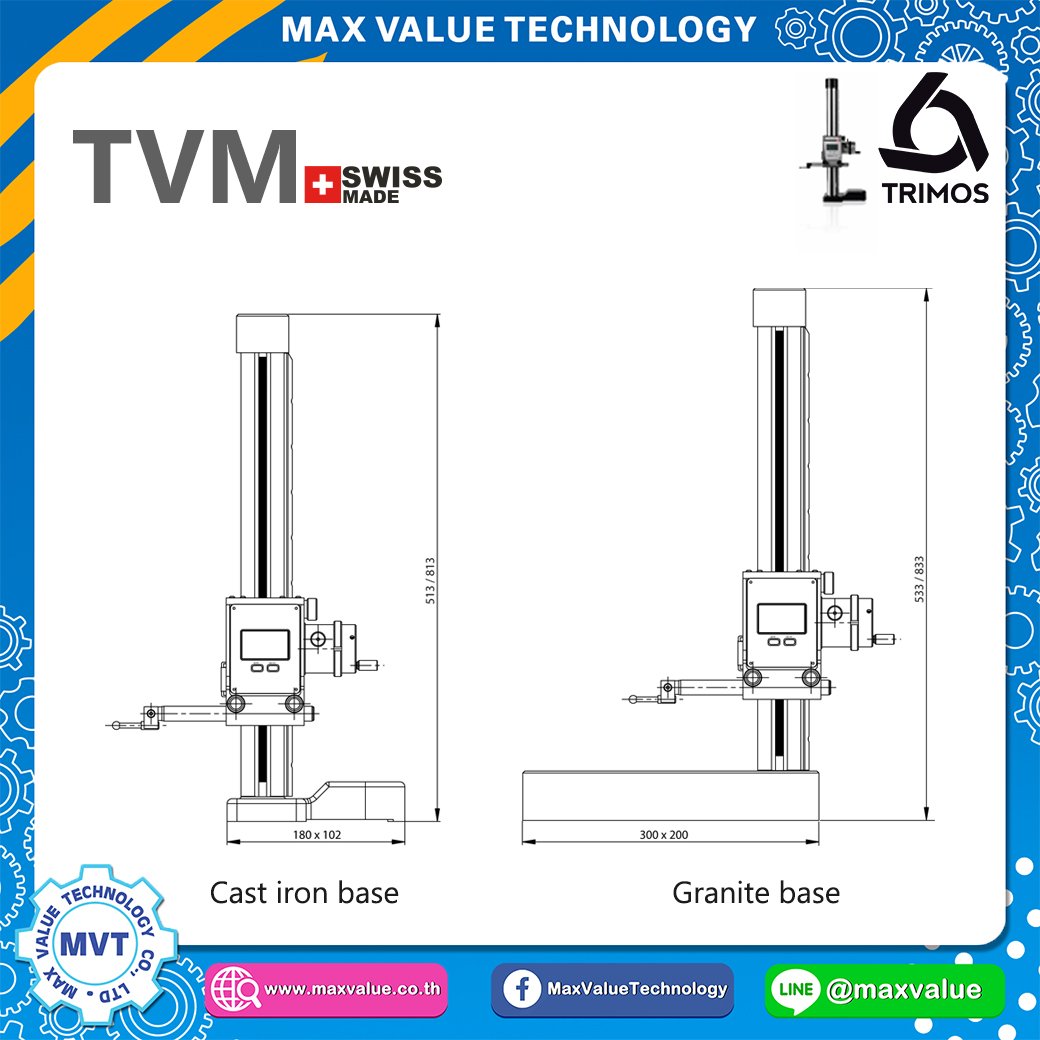

| Weight (cast iron base) | kg | 6 | 10 |
| Weight (granite base) | kg | 14 | 18 |
