"KROEPLIN" (Made in Germany)Mouth-diameter = 14 mm; Reference-diameter = 13,5 mm; Reference-height = 5,0 mm I Range 4 – 8,5, 4,0 – 8,5 mm.
หน้าจอ
หมวดหมู่ : Metrology Product , Aerosal Measurement , 20 mm aerosol receptacles ,
แบรนด์ : KROEPLIN
Share

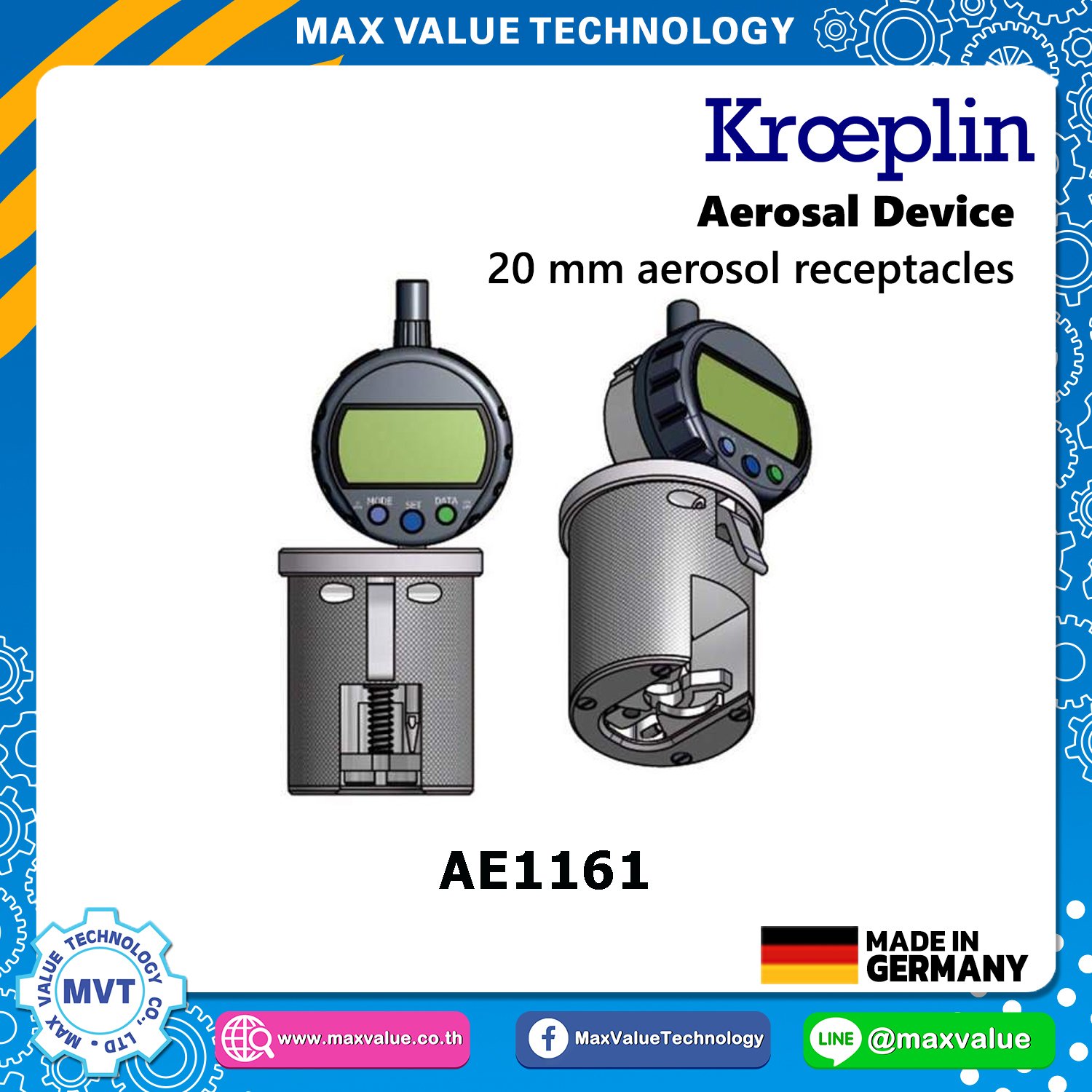

A1161/AE1161 - Aerosol devices
Brand : KROEPLIN (Made in Germany)
-----------------
Dial/Digital 20 mm aerosol receptacles
Mouth-diameter = 14 mm; Reference-diameter = 13,5 mm; Reference-height = 5,0 mm
- Measuring range Meb: 4 – 8,5, 4,0 – 8,5 mm
Download Data sheet (Display Scale)
Download Data sheet (Display Digital)
Download Catalog KROEPLIN - Aerosol devices
Additional information - caliper gauge
| Type | A1161 | AE1161 |
| Display | Scale | Digital |
| Display mm / inch | mm | mm |
| Application | Aerosol devices | Aerosol devices |
| Measuring span Mes | 4,5 mm | 4,5 mm |
| Measuring range Meb | 4 – 8,5 mm | 4,0 – 8,5 mm |
| Range of indication Azb | Not available | Not available |
| Numerical interval Skw | 0,01 mm | 0,01 mm |
| Max. permissible errors G | 0,06 mm | 0,06 mm |
| Repeatability limit r | 0,03 mm | 0,03 mm |
| Measuring force F min. | 4 N | 0,7 N |
| Measuring force F max. | 10 N | 4 N |
| Weight | 500 g | 550 g |
| Inch-version | A2100i | - |
