The digital hand-tachometer redpoint is a compact measuring unit for proximity measurement of rotational speed.
หมวดหมู่ : Inspection Product , Rotational Speed Measurements , Hand-tachometer , Digital Hand-tachometer ,
แบรนด์ : RheinTacho
Share

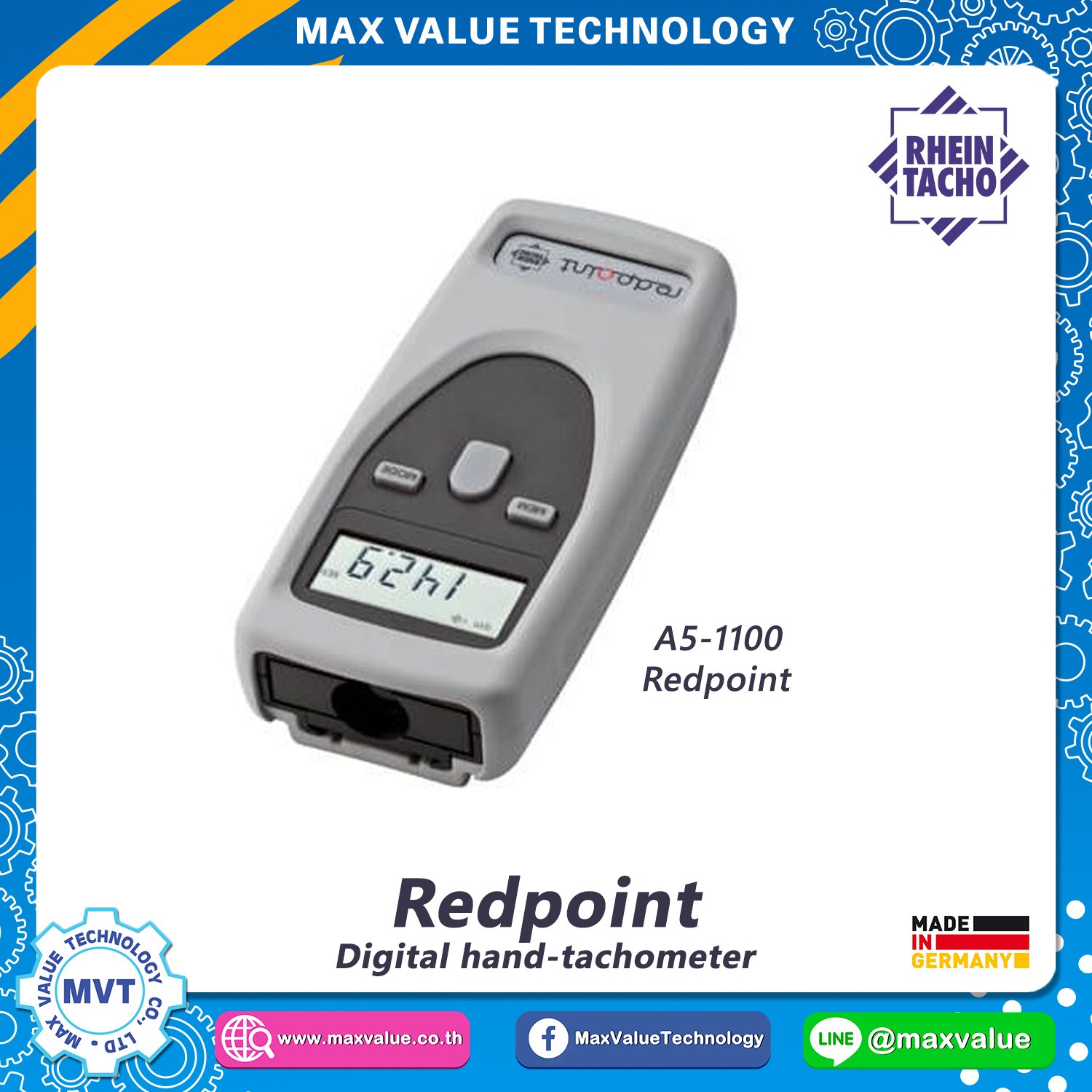

Digital hand-tachometer redpoint
Brand : RHEINTACHO
---------------------------------------
Product Feature :

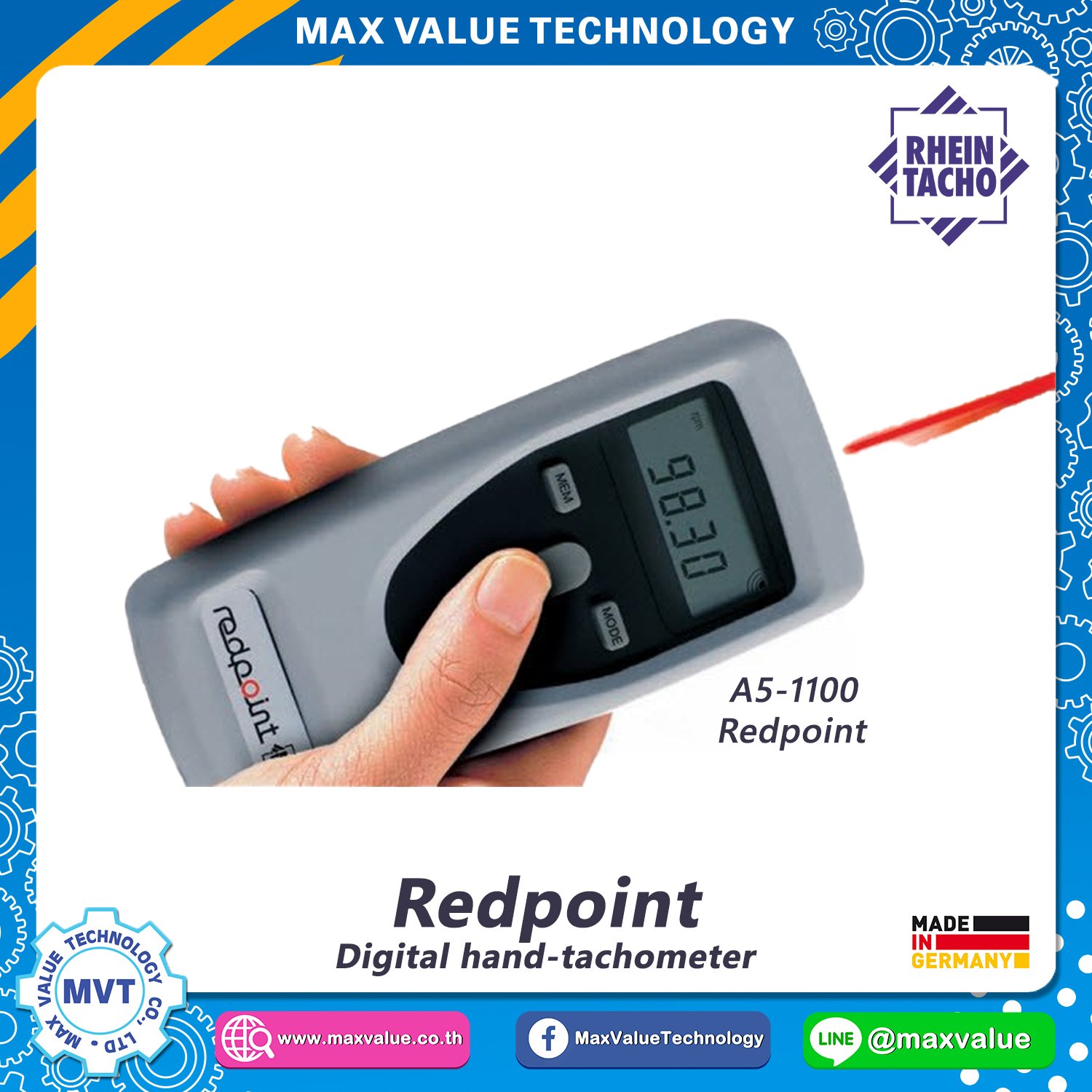

It focuses a beam of light at a thin sticker attached to the object, which reflects it at the speed of rotation. The result appears immediately on the 5-digit LCD. The distance between the redpoint and the test object can be up to 600 mm.
The digital hand-tachometer redpoint is just as useful when setting up plants and machinery as during service jobs, monitoring manufacturing processes or in development laboratories. It can record the speeds of engines, turbines, pumps, mixers, centrifuges and much more.
Technical shot data :
| Measuring range | 1 - 99,999 min-1 RPM |
| Measuring accuracy | ±0.02 % (bzw. ± 1 Digit) |
| Measuring distance max. | 600 mm |
| Measuring principle | optical |
| Housing | ABS plastic |
Scope of delivery :
| A5-1100 |
| Digital hand-tachometer redpoint |
| 10 reflective tapes |
| Case with protective foam |
| Calibration certificate |
| Operating instructions |
Catalogue :
Brochure Digital hand-tachometer
