The extremely bright, hand-held stroboscopes comprising the RT STROBE qbLED range are unrivalled in terms of brightness, operation and technology.
หมวดหมู่ : Inspection Product , Rotational Speed Measurements , Portable Stroboscopes ,
แบรนด์ : RheinTacho
Share

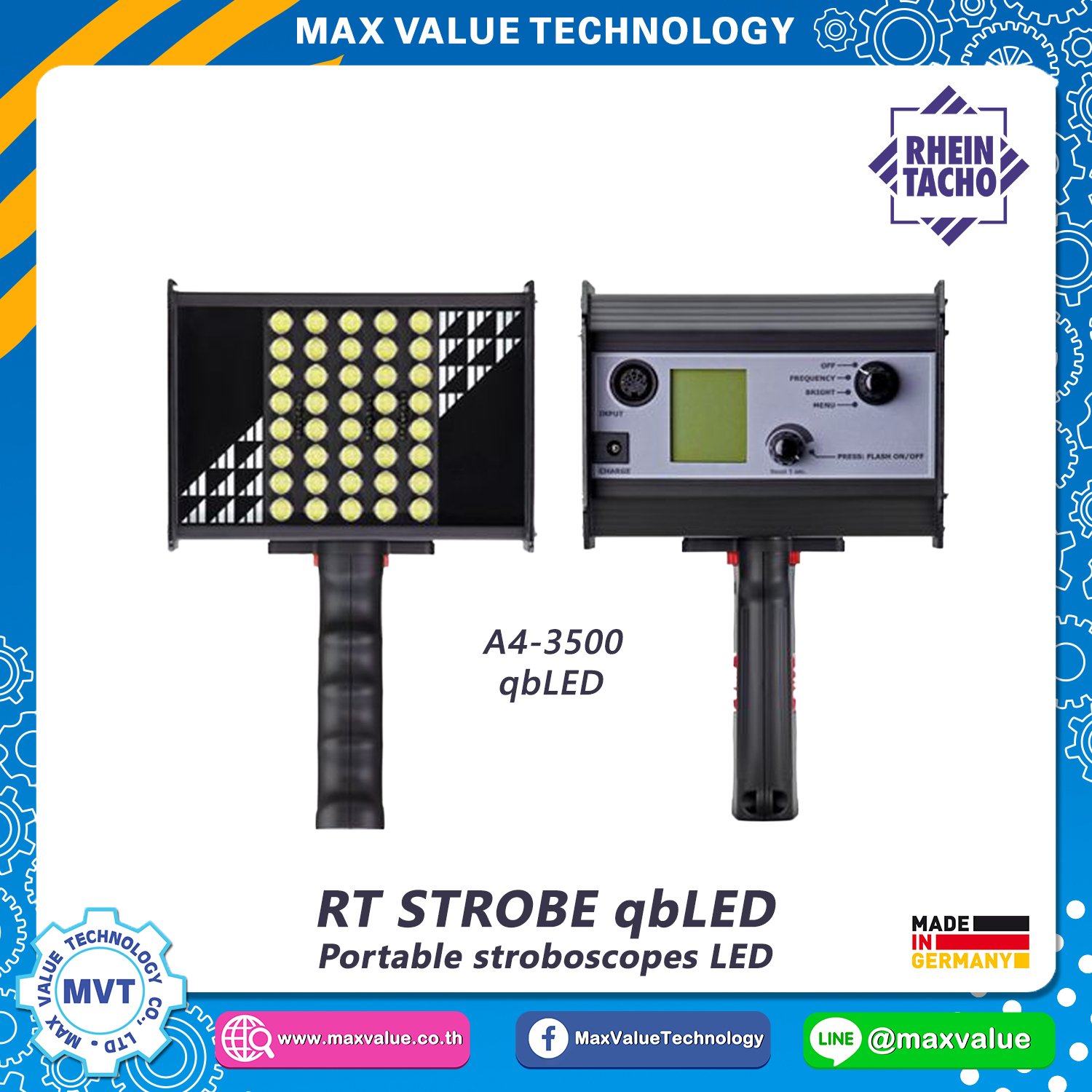

Portable stroboscope RT STROBE qbLED
Brand : RHEINTACHO
---------------------------------------
Product Feature :
These extremely robust and precise hand-held stroboscopes are used to conduct measurements in difficult industrial environments and are specifically designed for maintenance work / commissioning and inspections.
By using the knurled wheel, all standard settings, such as the flash sequence, can be adjusted quickly and easily without any prior in-depth knowledge, so that you can begin your maintenance work immediately. If your requirements are more specialised and very specific measurements, for example, call for a time-delayed flash or slow motion effects, you can activate these settings in the pro mode, which is specially designated for these. The phase-shift for position adjustments can also be easily set in this mode.
The portable stroboscope RT STROBE qbLED is also available as stationary version: RT STROBE qbLEDs.
Technical shot data :
| Number of LEDs | 40 |
| Frequency range | 30 ... 300,000 FPM |
| Light intensity max. | 1,750 LUX @ 1° / 30 cm |
| Flash duration | adjustable |
| Power supply | Integrated Lithium-ion batteries for up to 7 hours continuous use |

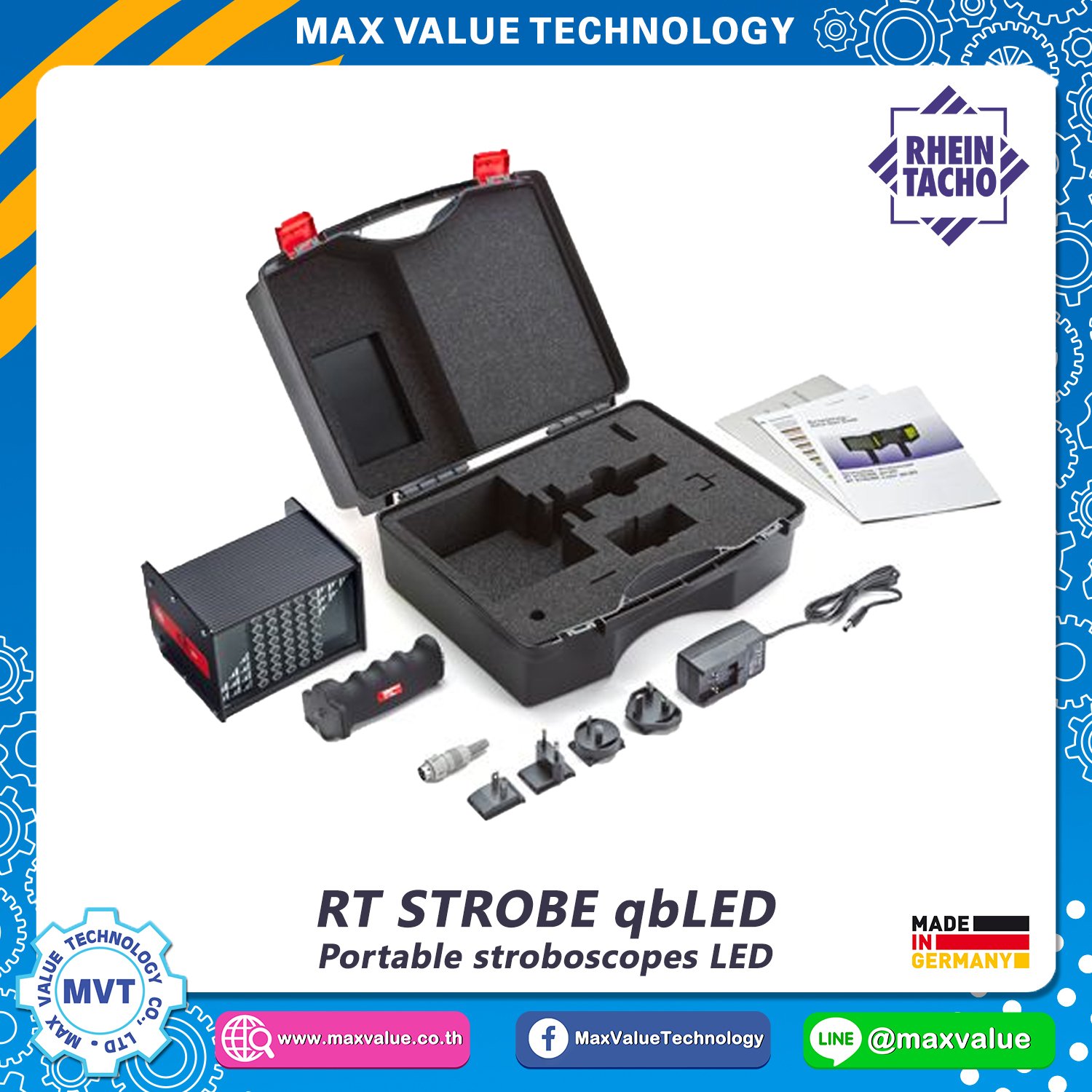

Scope of delivery :
| A4-3500 |
| Stroboscope RT STROBE qbLED |
| Operating instructions |
| Calibration certificate |
| Charger with connector set |
| 1 DIN plug 5-pin for trigger input and/or power |
| Handle |
| Case |
Catalogue :
Video :
