"KROEPLIN" (Made in Germany) Groove diameter: 42,5 mm; Height of the curl: 16 mm I Range 0 – 30, 0 – 25 mm.
Display
Categories : Metrology Product , Aerosal Measurement , Aerosol receptacles with valves ,
Brand : KROEPLIN
Share

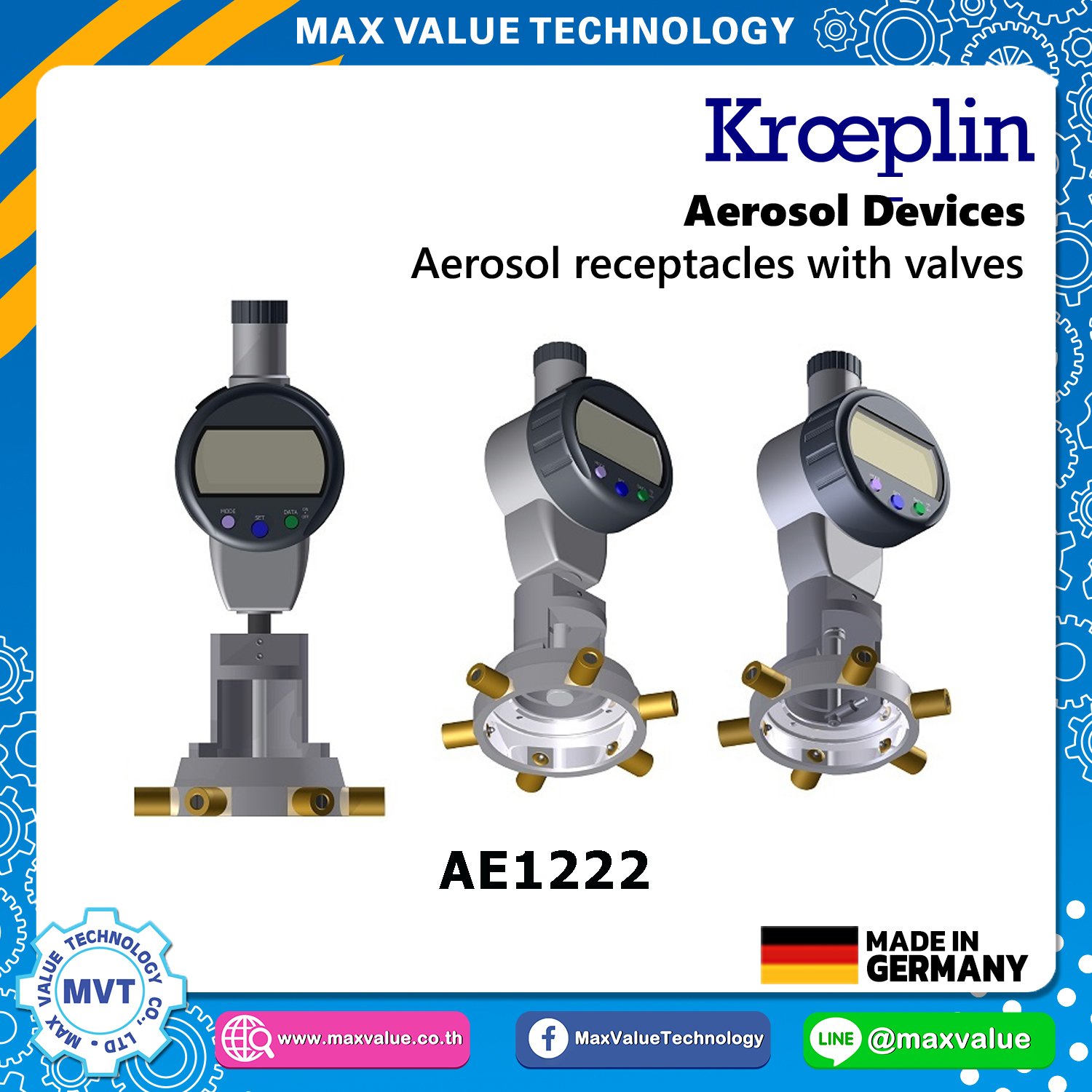

A1222/AE1222 - Aerosol devices
Brand : KROEPLIN (Made in Germany)
-----------------
Dial/Digital Aerosol receptacles with valves
Groove diameter: 42,5 mm; Height of the curl: 16 mm
- Measuring range Meb: 0 – 30, 0 – 25 mm
Download Data sheet (Display Scale)
Download Data sheet (Display Digital)
Download Catalog KROEPLIN - Aerosol devices
Additional information - caliper gauge
| Type | A1222 | AE1222 |
| Display | Scale | Digital |
| Display mm / inch | mm | mm |
| Application | Aerosol devices | Aerosol devices |
| Measuring span Mes | 30 mm | 25 mm |
| Measuring range Meb | 0 – 30 mm | 0 – 25 mm |
| Range of indication Azb | Not available | Not available |
| Numerical interval Skw | 0,01 mm | 0,01 mm |
| Max. permissible errors G | 0,03 mm | 0,03 mm |
| Repeatability limit r | 0,02 mm | 0,02 mm |
| Measuring force F min. | 0,7 N | 0,7 N |
| Measuring force F max. | 3 N | 3 N |
| Weight | 380 g | 430 g |
| Inch-version | A2100i | - |
