"KROEPLIN" (Made in Germany) Measurement of contact height “h” in aluminum and steel cans, according to Standard EN 14847 and 15006 I Range 3,5 – 5,0 mm.
หน้าจอ
หมวดหมู่ : Metrology Product , Aerosal Measurement , Aerosol receptacle ,
แบรนด์ : KROEPLIN
Share

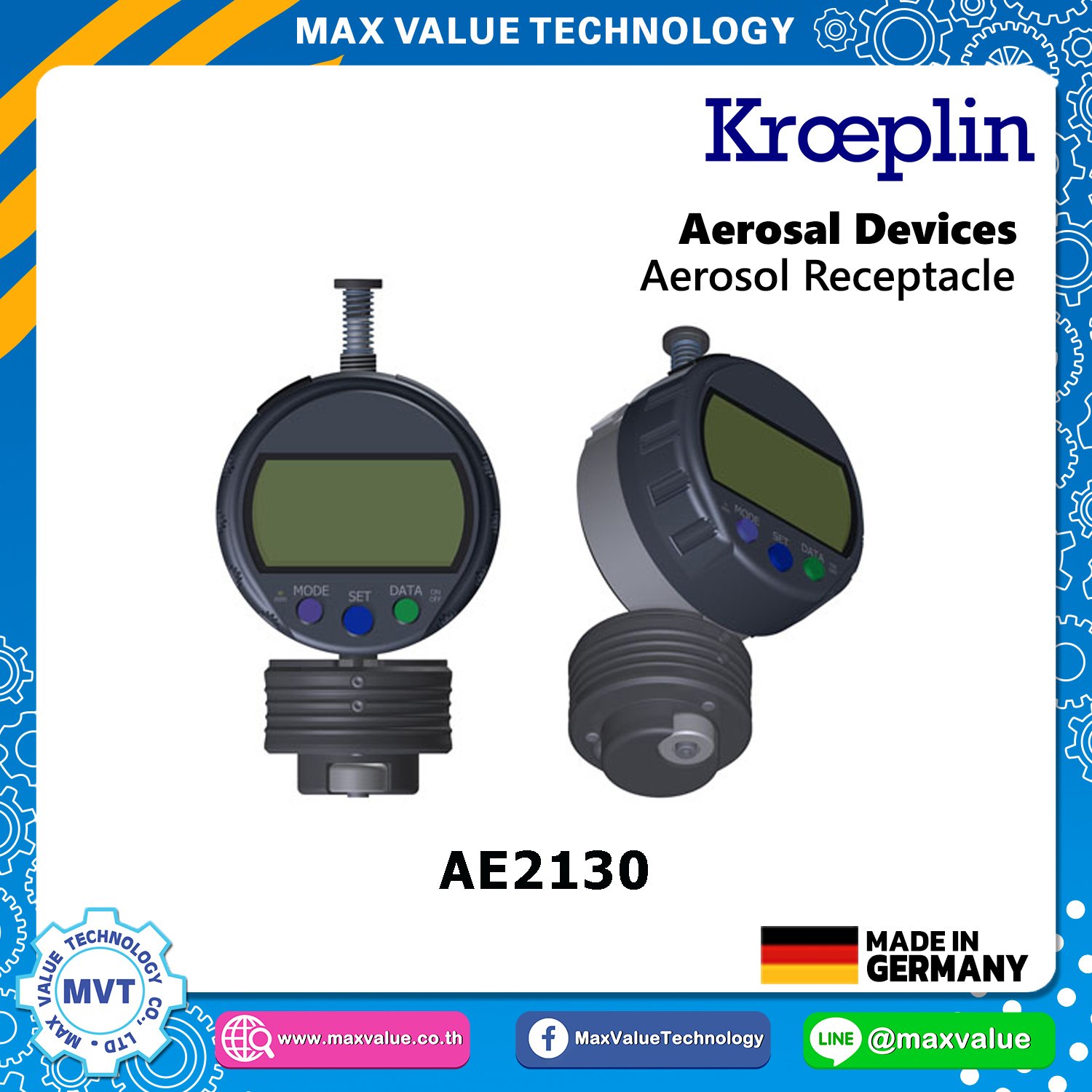

A2130/AE2130 - Aerosol devices
Brand : KROEPLIN (Made in Germany)
-----------------
Dial/Digital Valve

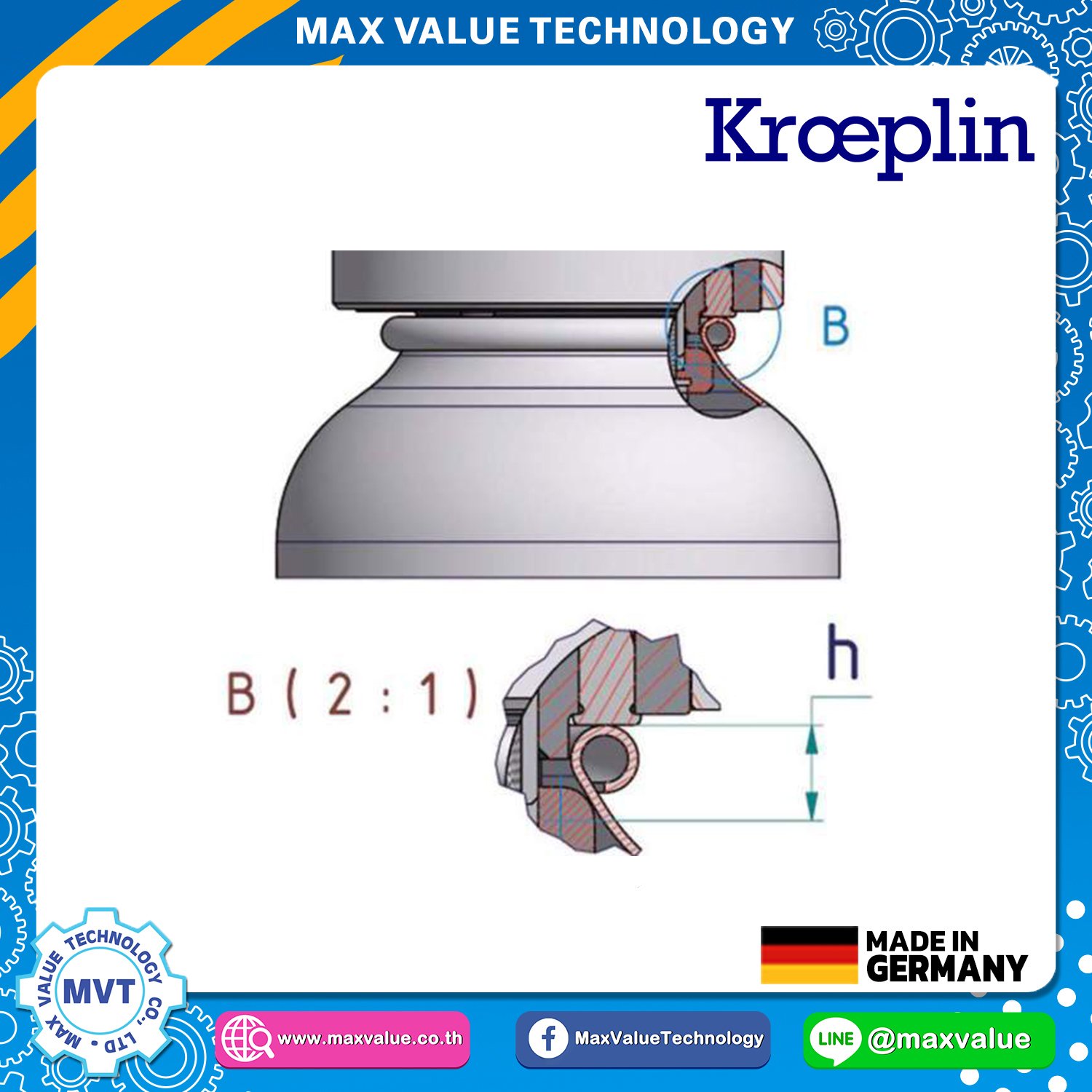

Measurement of contact height “h” in aluminum and steel cans, according to Standard EN 14847 and 15006.
- Measuring range Meb: 3,5 – 5,0 mm
Download Data sheet (Display Scale)
Download Data sheet (Display Digital)
Download Catalog KROEPLIN - Aerosol devices
Additional information - caliper gauge
| Type | A2130 | AE2130 |
| Display | Scale | Digital |
| Display mm / inch | mm | mm |
| Application | Aerosol devices | Aerosol devices |
| Measuring span Mes | 1,5 mm | 1,5 mm |
| Measuring range Meb | 3,5 – 5,0 mm | 3,5 – 5,0 mm |
| Range of indication Azb | 3,1 – 10,2 mm | 3,1 – 10,2 mm |
| Numerical interval Skw | 0,01 mm | 0,01 mm |
| Max. permissible errors G | 0,02 mm | 0,02 mm |
| Repeatability limit r | 0,02 mm | 0,02 mm |
| Measuring force F min. | 3,5 N | 3,5 N |
| Measuring force F max. | 4,5 N | 4,5 N |
| Weight | 300 g | 350 g |
| Inch-version | A2100i | - |
