"KROEPLIN" (Made in Germany)Measurement of shoulder height “S1” in diameter 32.6 mm I Range 0 – 10 mm.
หน้าจอ
หมวดหมู่ : Metrology Product ,  Aerosal Measurement ,  Aerosol receptacle ,
แบรนด์ : KROEPLIN
Share

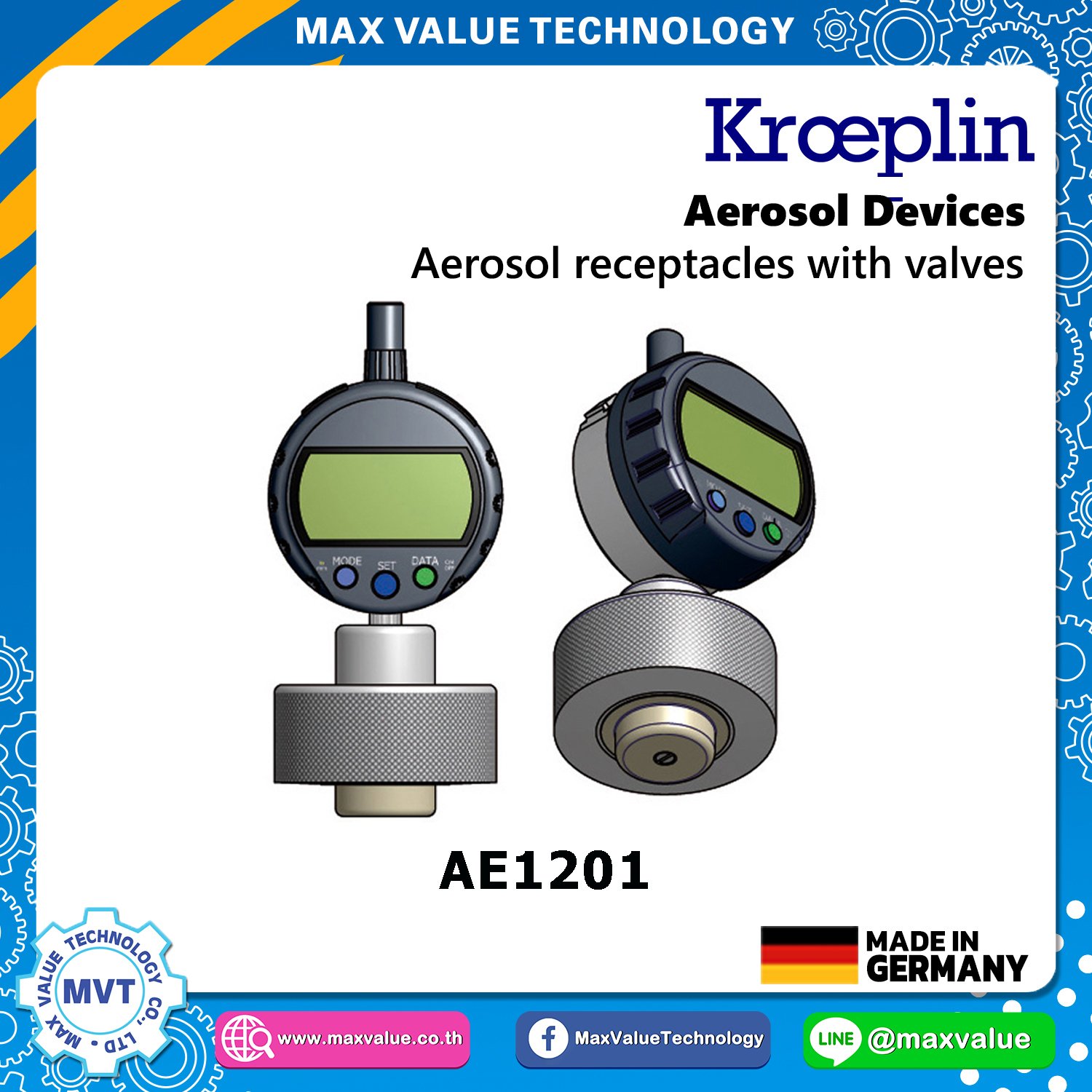

A1201/AE1201 - Aerosol devices
Brand : KROEPLIN (Made in Germany)
-----------------
Dial/Digital Valve

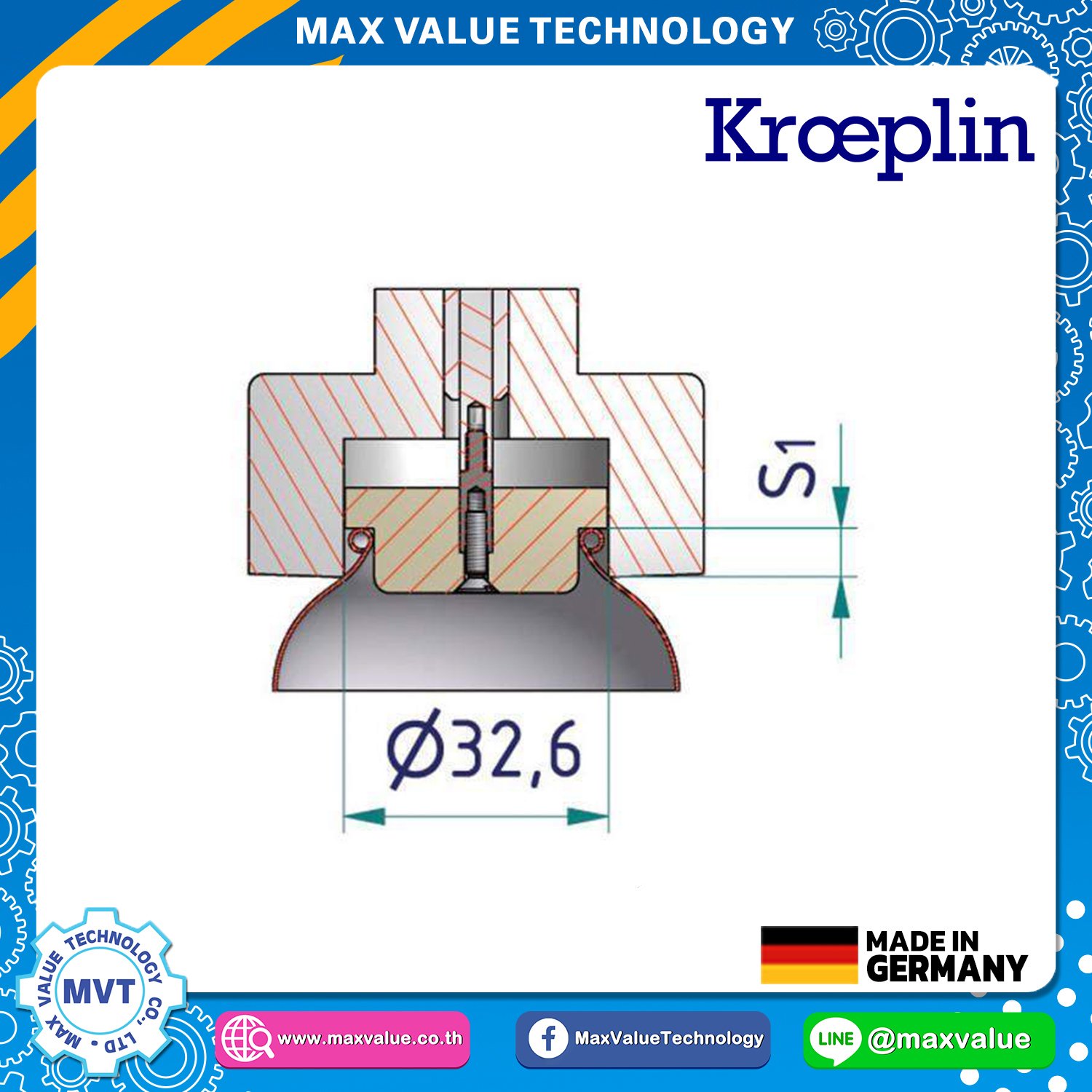

Measurement of shoulder height “S1” in diameter 32.6 mm
- Measuring range Meb: 0 – 10 mm
Download Data sheet (Display Scale)
Download Data sheet (Display Digital)
Download Catalog KROEPLIN - Aerosol devices
Additional information - caliper gauge
Type | A1201 | AE1201 |
Display | Scale | Digital |
Display mm / inch | mm | mm |
Application | Aerosol devices | Aerosol devices |
Measuring span Mes | 10 mm | 10 mm |
Measuring range Meb | 0 – 10 mm | 0 – 10 mm |
Range of indication Azb | Not available | Not available |
Numerical interval Skw | 0,01 mm | 0,01 mm |
Max. permissible errors G | 0,02 mm | 0,02 mm |
Repeatability limit r | 0,1 mm | 0,1 mm |
Measuring force F min. | 0,7 N | 0,7 N |
Measuring force F max. | 3 N | 3 N |
Weight | 590 g | 630 g |
Inch-version | A2100i | - |
